Where fashion meets function
Square Drain is an elevated point drain shower system that stands out from the rest for its design, ease of use and versatility –helping homeowners, designers and installers create a spa-like bathroom experience.
Functional Design
Allows for easy maintenance with debris basket and cover key included. A standard drain outlet can handle up to 12 GPM* within the shower footprint. *Actual volume is limited by the plumbing lines and P-trap.

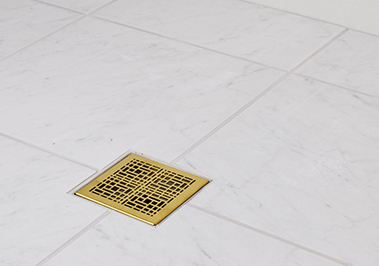

Faster Install
The SquareDrain shower system can be installed in 2 hours saving time and money.
Versatility

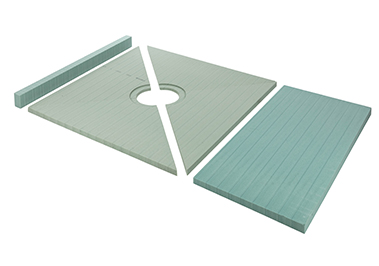

With site-sizable PET QuickSlope panels, universal compatibility with flange adaptors, and multiple waterproofing options – flexibility in design makes the system job site-ready.
SquareDrain Details
Key Features
- QuickDrain SquareDrain shower drain bodies are made of 304 stainless steel
- Ideal choice for residential and hospitality markets
- Available in 4 in., 5 in. and 6 in. sizes with a vertical waste outlet and five finish options
- SquareDrain point offers the same flexible point drain solution for both new and retrofit applications
- SquareDrain waterproofing accessories are purchased separately. Available options include topical sheet and topical liquid waterproofing
- A standard drain outlet can handle up to 12 GPM* with the shower footprint *Actual volume is limited by the plumbing lines and P-trap
Parts / Included

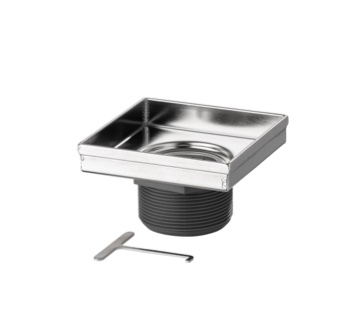

- 4 in. 304 Stainless Steel SquareDrain Drain Body: (1)
- 2 in. Threaded Outlet Adaptor (1)
- Cover Removal Key (1)
- Debris Basket (1)
Recommended Flange Adaptor
Choose QuickDrain’s patented universal flange adaptor to complement the drain body. Large flange adaptor and accessories are compatible with 5 in. or 6 in. drain bodies, while the small flange adaptor and accessories are compatible with the 4 in. drain body.
Documents & Submittals
SquareDrain BrochureSquareDrain Drain Body Submittal
SquareDrain Liquid Applied Waterproofing Kit Submittal
SquareDrain Sheet Waterproofing Membrane Waterproofing Submittal
SquareDrain Pre-Sloped Shower Pan Kit Submittal
SquareDrain PET Point Pan Kit Curbless Submittal
PET Formed Curb Submittal
SquareDrain Universal Flange Adaptor Conversion Kit Submittal
SquareDrain Universal Flange Adaptor Full Kit Submittal
Rectangular PET Point Pan Kit Submittal
